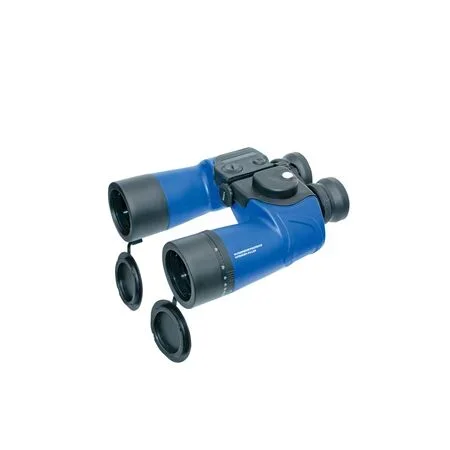

7 x 50 Central Focus Binoculars with Compass

Description

Specification:

TYPE 7 X 50

BODY STYLE SEMI-AROMATIC THERMOPLASTIC BODY

POWER '7 X ± 5%

OBJECTIVE DIAMETER 'Φ50mm ± 1mm

FIELD ANGLE 6.6° ± 5%

FIELD OF VIEW(at 1000m/at 1000yds.) 115m/345ft.

EXIT PUPIL DIA. Φ7.0mm ± 10%

NEAR FOCUS '7m

EYE-RELIEF 27.4mm

'RELATIVE BRIGHTNESS 49

OPTICAL CONFIGURATION OBJECTIVE LENS:    2E1G

OCULAR LENS:       3E2G 'PRISM:                    PORRO

OPTICAL MATERIAL: ALL LENS AND PRISM ARE MADE OF OPTICAL GLASS (PRISM: BaK4)

COATING CONDITION ALL LENS – FULLY COATED

SURFACE TREATMENT 'RUBBER

RESOLVING POWER 5.6"

FOCUSING SYSTEM CENTER FOCUS

FOCUSING ADJUSTMENT '-4 TO +8 DIOPTER

OCULAR ADJUSTMENT '-4 TO +4 DIOPTER A

DJUSTABLE EYE PUPIL 58–72 mm

EYECUPS 'RUBBER FOLD-DOWN EYECUP

ILLUMINATION SYSTEM 'LED

ADDED-FUNCTION 'RANGEFINDER RETICLE & DIRECTIONAL COMPASS

ACCESSORY SOFTBAG, STRAP, LENS CLEANING CLOTH, DESICCANT.

WEIGHT NET:  989G            GROSS:  1260G

SIZE PRODUCT: 19.8 x 6.5 x 20.2 CM³     W/-BOX: 21.1 x 8.6 x 22.0 CM³

Product Code:N750C-1
