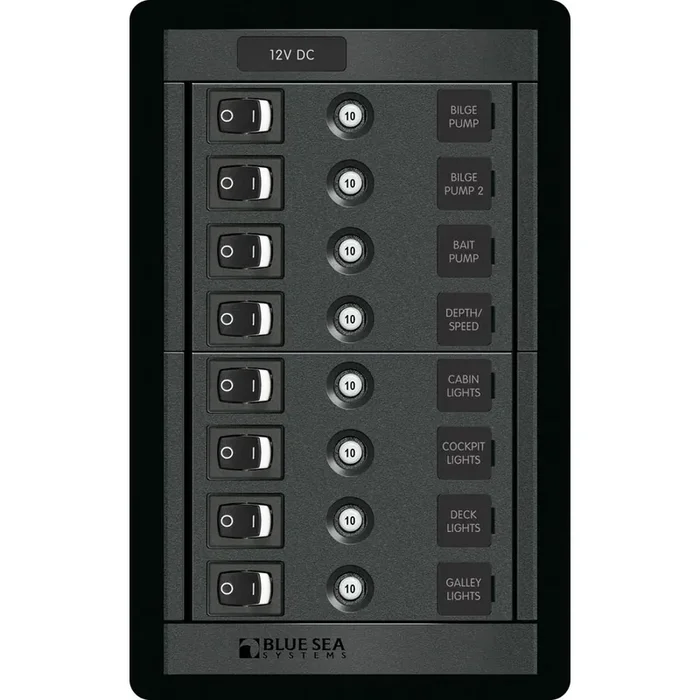

Blue Sea 1457 8 Position Switch CLB Vertical

Description

8 Position Switch CLB Vertical
Features:

• Available with voltmeters and ammeters
• Panels with meters include a toggle switch to monitor voltage on up to three battery banks
• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8
• Nominal Voltage: 12V DC
• Maximum Amperage*: 80A
• Height: 7.75″ (196.85mm)
• Width: 4.88″ (123.95mm)
• Depth: 3.50″ (88.9mm)
• Weight: 1.69lb (0.77kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) – 7480 – Rocker Switch SPST – ON-OFF
(8) – 7054 – Push Button Reset Only Quick Connect Circuit Breaker – 10 Amps
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
