Description

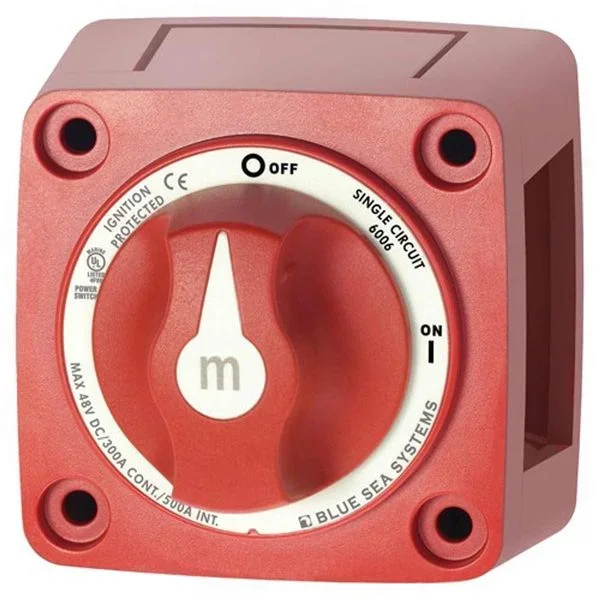

M-SERIES BATTERY SWITCH
rr
300 Amp continuous rating for outboards and small gasoline or diesel engines.
rr
Tin-plated copper studs for maximum conductivity and corrosion resistance
rr
Studs accept 3/8″ (M10) ring terminals
rr
One-piece terminal stud design never loosens over time
rr
7/8″ (22.22mm) stud length accepts multiple cable terminals
rr
Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
rr
Case design allows surface, rear, or front panel mounting options
rr
Paralleling Link BUS 8-29159
rr
Specifications:
rr
Terminal Stud Size: 3/8″ 16 (M10)
rr
Terminal Stud Torque: 120 in-lbs
rr
Mounting Holes: Accept #10 screw
rr
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
rr
Cable Clearance 1.12″ (28.4mm)
