Cristec YPOWER 24V 20 Amp 3 Output Charger

Description

Product Overview

  Cristec YPOWER 24V 20 Amp 3 Output Charger

The YPOWER 24V 20 Amp 3 Output Charger by Cristec contains such features as adaptive charging, 3 isolated battery banks, scalable charger and much more all within a modern robust and compact casing. This charger is able to charge batteries to 80% of full charge, slowly complete remaining charge to 100% and even revitalise batteries to prevent sulphation which selectable by internal switch.

24V Battery Charger

20A Charge Output

Outputs – 3

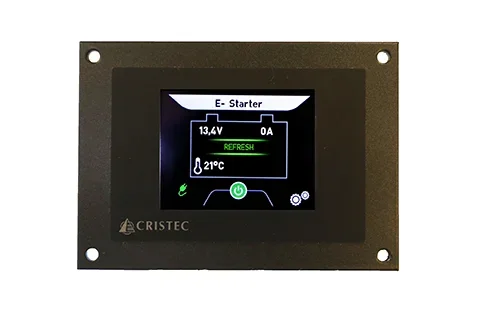

The optional CRISTEC YPOWER Touch Display shows real time data about the battery’s charging and the charger’s AC input power, including battery voltage (up to 3 banks), charger current, charger state (Boost, absorption, Floating), battery room temperature (if optional temperature probe mounted), AC input network voltage and frequency. The system will monitor data and automatically trigger an acoustic and visual alarm for low battery voltage (up to 3 banks), high battery voltage (up to 3 banks), over-temperature in battery room (if optional temperature probe mounted), low AC input voltage, low AC input frequency. The screen brightness is adjustable with night/day mode
