Description

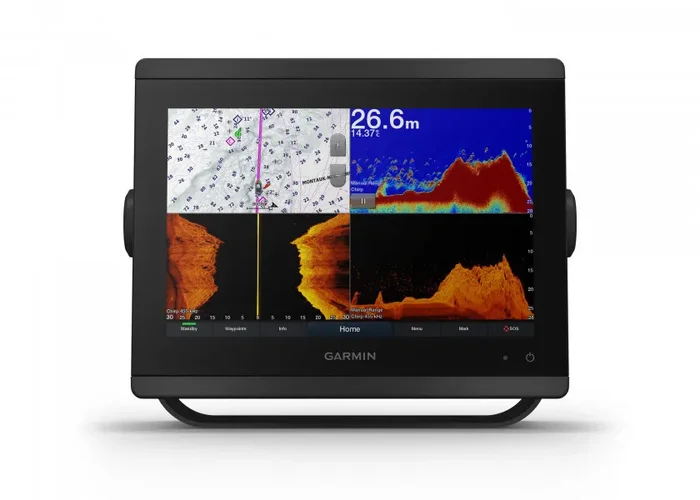

GPSMAP 8410xsv
GARMIN’s GPSMAP 8410xsv multifunction display features a 10″ Full HD IPS touchscreen for even greater viewing angles and brilliant readability even in sunlight and polarized glasses. A wide range of connectivity options and network solutions give you complete control over your system. High-quality processor for ultra-fast map images, superior networking and more. Mount multiple displays side by side for an elegant glass cockpit look. State-of-the-art graphics and user interfaces. Supports the Panoptix™ LiveScope system and the complete Panoptix™ Multi Beam sonar series
Sonar Support
The GPSMAP 8410xsv combo offers built-in sonar support that allows you to use Ultra HD sonar without a black box. Furthermore, the high-class GARMIN traditional dual channel CHIRP sonar with 1 kW, CHIRP ClearVü and CHIRP SideVü sonar are supported.
Fully-Fledged Marine System
With the GPSMAP 8410xsv you have full control over your ship. Operate your radar, autopilot, instruments and more via the multifunction display. With the OneHelm™ function you can mirror your display to several third-party devices and operate your system from them. In addition, OneHelm™ coordinates many products from other manufacturers.
Wide Range of Connectivity Options
Easily connect your GPSMAP 8410xsv to your quatix 5 Smartwatch, VIRB® action camera, gWind™ Wireless 2 Wind Sensor and other devices with Bluetooth® connectivity, ANT® technology and Wi-Fi®. With the ActiveCaptain app you have access to OneChart™ or Smart Notifications.
Cartography
Even more detailed and precise maps! You can expand the memory of your device to acquire BlueChart® g3 and BlueChart® g3 Vision with Navionics data as accessories. The Auto Guidance function suggests the route that best suits your ship’s data.
SmartMode
Simple and independent operation of your devices in the network. The SmartMode control gives you fast and easy access to all the information you need to ease high-stress situations such as docking.
Special Sailing Features
The built-in SailAssist function makes it easier to make decisions when sailing. It displays useful data for sailing clearly and can also display laylines to determine the optimal turning angle.
Technical specifications
|
Display size |
10″ |
|
Resolution |
1920×1200 px |
|
Dimensions |
259 x 205 x 75 mm |
|
Weight |
3 kg |
|
Installation options |
Fixed installation or via bracket bracket (inclusive) |
|
GPS receiver |
10 Hz (GPS, GLONASS, Galileo) |
|
Pre-installed card |
Global base map |
|
Sonar support |
40 – 250 kHz CHIRP, |
|
Sonar power |
1 kW 2-channel CHIRP |
|
Panoptix LiveScope ™ support |
Yes |
|
Quickdraw Contours |
Yes |
|
Card slots |
2x microSD |
|
WiFi |
Yes |
|
NMEA2000 |
Yes, one port |
|
NMEA0183 |
Yes, one port |
|
Marine network |
Yes, two ports |
|
Sonar |
Yes, one 8-pin and one 12-pin port |
|
Video Input |
Yes, one port (BNC) |
|
HDMI |
Yes, two ports |
|
USB |
Yes |
|
Includes |
GPSMAP 8410xsv, power cable, bail mount with knobs, NMEA2000 connection cable and t-pieces, flush-mounting kit, sun cover, trim piece snap covers, operating instructions |
Chart module:
| SD / Micro SD | CompactFlash | C-Card MAX orange | C-Card NT + black |
Compatible with the following nautical charts:
| Garmin Bluechart G2 | Garmin Bluechart G2 Vision |
Nautical chart features:
| Chart system | Vector Charts | Shaded Depths and Shorelines | Harbor Charts | Tidal Areas | Fishing Permits / Bathymetric Contours | Auto Guidance | 3D Mariner’s Eye / Fish Eye |
| Garmin Bluechart G2 | |||||||
| Garmin Bluechart G2 Vision |
