Description

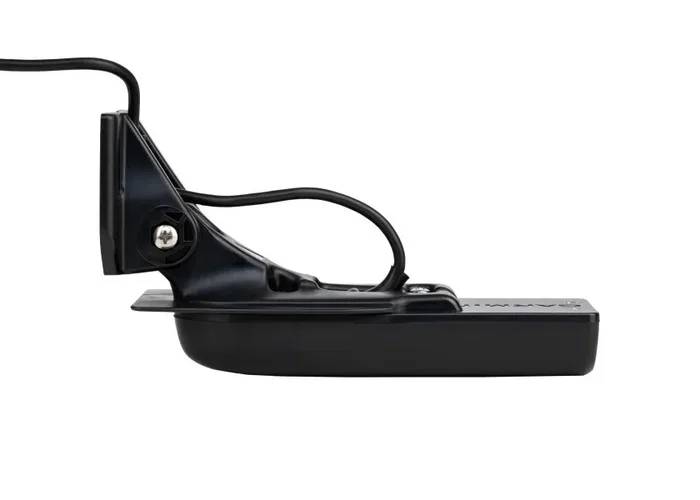

The Garmin GT24UHD-TM all-in-one transducer provides pin-sharp sonar images in traditional CHIRP and ClearVü formats.
Traditional High Wide CHIRP Sonar
For an exceptionally clear view and precisely defined structures up to 800 feet (244 m) below the boat.
ClearVü Technology
ClearVü provides exceptionally detailed images of fish and structures up to 200 feet (60 m) below the boat with a frequency of 800 kHz.
Easy to Install
Thanks to the included transom and trolling motor brackets, the unit is easy to install and you’ll be up and fishing in no time.
Technical Data
| Frequencies | CHIRP: 150-240 kHz ClearVü: 760-880 kHz |
| Power | CHIRP: 350 W ClearVü: 350 W |
| Max. depth | CHIRP: 244 m ClearVü: 61 m |
| Beam width | CHIRP: 16° to 24° (adjustable) ClearVü: 0.94° to 60° |
| Data | Depth and temperature |
| Number of pins | 8 |
| Cable Length | 6 m |
| Transducer supported deadrise/transom angles | 0°-70° degree transom |
Compatible with the following Garmin chartplotters:
| Garmin GPSMAP 8410/8412/8416 xsv |
| Garmin Echomap UHD2 52/72 cv (optional adapter cable itm: 93983 required) |
| Garmin Echomap UHD 72 cv |
