Description
The High-Performance Stainless Steel 16L Isotemp Basic Square Boiler by Indel Marine is engineered for durability and efficiency, making it an essential component for boats and marine applications. This boiler is designed with selected materials that ensure optimal performance and longevity.
The tank and all components that come into contact with water are constructed from AISI 316 stainless steel, which is well-known for its corrosion-resistant properties. The welding process employs inert gas techniques to guarantee that there is no risk of corrosion throughout the lifespan of the device. The external casing and mounting bracket are also made from non-magnetic AISI 316 stainless steel, contributing to its robustness and reliability.
The boiler features an inner resistance rated at 230 V, 750 W, made from nickel-plated copper, strategically positioned for easy inspection and maintenance of the tank. Its insulation, constructed from polyurethane foam, minimizes heat loss without the use of harmful CFCs. This ensures that the boiler operates efficiently by maintaining water temperature.
Additional advantages of the boiler include:
Flexible installation options: suitable for horizontal or vertical mounting.
Comprehensive warranty: 2 years total warranty and 5 years warranty specifically for the tank.
Equipped with a 4 bar safety valve that incorporates a check valve to prevent water discharge due to expansion, and facilitates easy winter drainage.

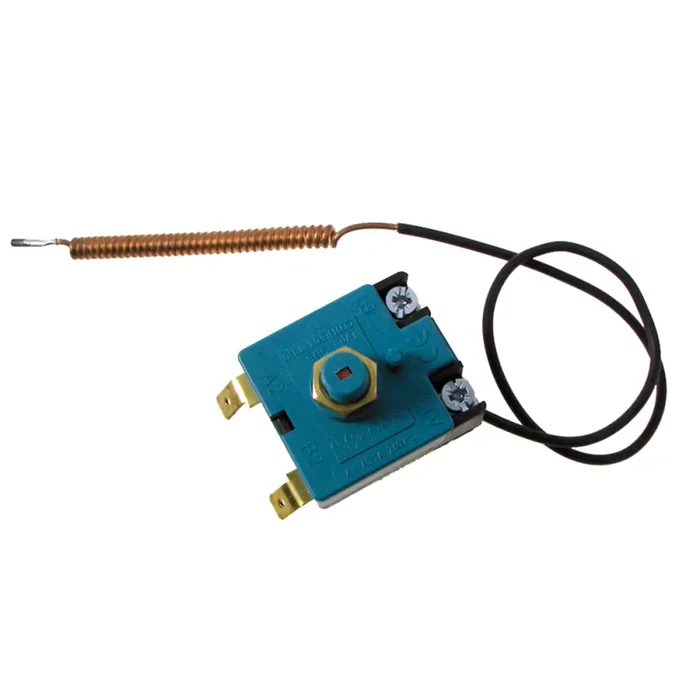

A double safety thermostat that is manually adjustable, pre-set to maintain water temperature above 70°C to inhibit bacterial growth.
This boiler is an ideal choice for maritime environments where reliability and efficiency are paramount.
Capacity: 16 liters
Dimensions: Square design for optimized space usage
Voltage: Available in 230 V or 115 V
Power: 750 W
Material: AISI 316 stainless steel
Weight: Lightweight for easy installation
Mounting options: Horizontal or vertical
Safety features: Double safety thermostat and 4 bar safety valve
| Model | SQUARE 16 |
|---|---|
| Capacity | 16 LT |
| Dimensions | 560X180X400 MM |
| Weight | 16 KG |
