Hydraulic Cylinder Vetus MTC175

Description

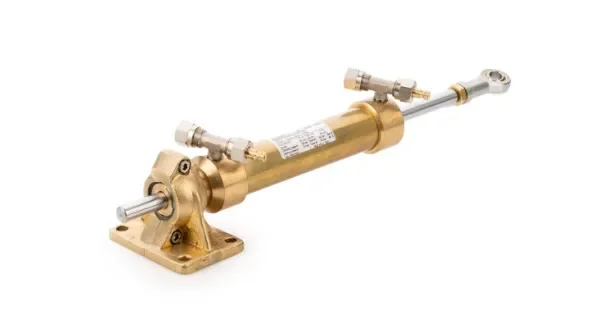

Hydraulic Cylinder Vetus MTC175

This product is Manufactured or Distributed by Vetus . Hydraulic Cylinder Vetus MTC175 ,

We are pleased to present our premium brass-bodied hydraulic cylinder, the Vetus MTC17510, specifically crafted for larger yachts and work vessels. This exceptional product features a zinc-plated rod end, with an option to upgrade to stainless steel, along with compression fittings that come equipped with bleed nipples.

Wheel Turns (lock to lock with HTP pump models):

HTP42: 8.5

Dimensions:

• Stroke: 225 mm
• Volume: 356 cm³
• Length of Tiller Arm: 196 mm
• Rod End Thread: M20
• Weight: 8 kg

Technical Specifications:

• Maximum Torque: 1717 Nm (175 kgm) (1266 ft.lbs)
• Torque at 35° and 56 kg/cm²: 1373 Nm (140 kgm) (1013 ft.lbs)
• Pressure: 5492 kPa (56 kg/cm²) (797 lbs/sq.inch)
• Connections: G¼ female pipe thread
• Total Rudder Angle: 70° (2 x 35°)

The Vetus MTC17510 brass-bodied hydraulic steering ram is perfectly suited for marine applications. It includes zinc-plated rod ends, compression fittings, and bleed nipples. Additionally, a nylon fixing bracket is provided with the Vetus hydraulic steering cylinder.

Specifications:

• Volume: 3560 mm³
• Capacity: 356 cc
• Length of Tiller Arm: 196 mm
• Brand: Vetus
• Total Rudder Angle: 70°
• Connections: Fittings compatible with 10 mm OD pipe
• Maximum Pressure: 5492 kPa
• Model: MTC17510
• Operating Pressure: 797 Psi (56 Bar)

Recommended Tubing:

• Nylon steering hose 6 mm ID / 10 mm OD (V-HHOSE6015)
• Nylon steering 8 mm ID / 12 mm OD (V-HHOSE8015)
• Steering hose 8 mm ID / 14.2 mm OD (603508)
• Soft annealed red copper / steel tubing 8 mm ID / 10 mm OD

Stroke: 225 mm (8.85″)Thread Size: Rod End Thread: M20, Connections: G1/4 female pipe threadMaximum Torque: 175 kgm (1717 Nm)

This hydraulic cylinder is designed to deliver dependable performance and long-lasting durability for all your boating requirements
