Description
Entertainment on the highest level! The Intellian i series satellite antennas provide excellent TV reception.
Exclusive, patented technology makes watching TV on board easier and more comfortable than ever before!
Easy installation
A single cable connects the control unit (ACU) to the antenna.
Configuration is easier than ever, so you can relax in no time while watching TV on board!
Twin LNB

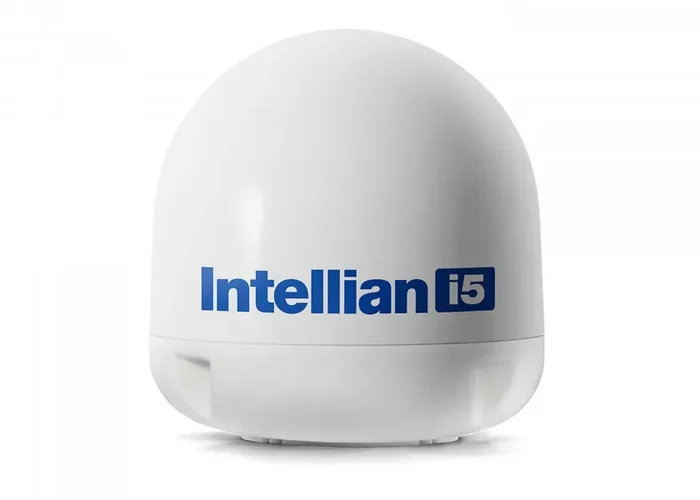

The Intellian i5 features a dual LNB. This means that you can connect two receivers to the antenna and at the same time.Enjoy your favourite programs in full HD
Every satellite in the i-series enables reception in both standard and HD quality.
Impressive power
Intellian’s satellite antennas offer huge coverage, which you can rely on.
Enjoy clear, smooth TV images anytime, anywhere.
iQ2: Quick and Quiet technology
Intellian’s patented search algorithm finds the signal 4-5 times
faster than conventional antennas.
Patented dynamic beam tilt technology keeps the signal stable and prevents interference, pixelation and signal dropouts.
It also reduces stepper motor activity for tracking by up to 80% (compared to conventional antennas),
so that you can enjoy your programme in peace and without annoying background noise.
User-friendly operation
With the help of the alphanumeric display of the ACU control unit, setting up and operating the system is extremely easy. All settings can also be performed via PC/laptop (contrary to the instructions, control via the Aptus app is no longer available).
- ON/OFF button
- Satellite switch
- Stand-By function
Integrated GPS antenna
The Intellian i5 has an internal GPS antenna, which helps to significantly reduce the time needed to connect to the satellite.
The integrated NMEA0183 interface can also be used to feed in GPS data from an external GPS antenna.
Technical data
| Radome height | 62.7 cm / 24.7″ |
| Radome diameter | 61 cm / 24″ |
| Reflector diameter | 53.5 cm / 21″ |
| Weight: | 17.3 kg / 38 lbs |
| Operating temperature | -25 °C to +55 °C / -13 °F to +131 °F |
| Storage temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Water rating | IPX6 |
| Compliance | CE/FCC |
| Receive frequency coverage | 10.7 ~ 12.75 GHz |
| LNB | Twin LNB |
| Minimum transmission power | 47 dBW |
| Azimuth area | 680° |
| Elevation area | 0° to 90° |
| Ship movement | Roll +/- 25°, pitch +/- 15° |
| Rotation speed | 50° /second |
| Antenna-control unit | |
| Dimensions | 17.8 x 21.7 x 5.4 cm / 7 x 8.5 x 2.1 “ |
| Weight: | 1.2 kg / 2.6 lbs |
| GPS Interface | Integrated (NMEA0183) |
| Power supply | 9 – 30 V DC |
| Power consumption (amps) | 30 W / Max. 50 W |
| Included in delivery |
|
