Icom IC-M330GE Fixed VHF/DSC Marine Transceiver

Description

Product Overview

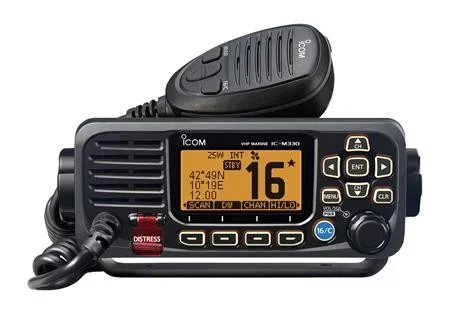

  Icom IC-M330GE Fixed VHF/DSC Marine Transceiver | IC-M330GE





The IC-M330GE by ICOM is one of the smallest fixed VHF/DSC radios in the world. The front face fo the unit is so compact that it matches the size of a modern smartphone. However, despite its small size, the IC-M330GE has all the hallmarks of Icom’s stylish design, ease of use and performance. The IC-M330GE boasts an ultra compact body and offers flexible installation, ideal for a cockpit where space is limited. A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access. A newly designed speaker delivers distortion-free clear audio even at full volume. It provides dynamic and clear audio over a wide bass and treble range. The IC-M330GE’s receiver provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB). The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls. The IC-M330GE  also has a built-in GPS receiver which provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls. An external GPS antenna is supplied to maximise coverage.

*IC-M330GE is the first Icom fixed marine VHF radio that complies with the latest maritime ITU standard “ITU-R M493-14” this standard, in essence, requires an external GPS antenna. ITU-R M493-14 will be compulsory from November 2018. All maritime class D fixed radios from all manufacturers will need to comply after this date.)

Easy-to-read full dot-matrix display

Intuitive user interface

New speaker delivers dynamic, clear audio

Class-leading receiver performance (IMD and Selectivity: more than 70 dB)

Built in GPS Receiver and External GPS Antenna

Tag scan and favourite channel functions

Dual/tri-watch function for monitoring CH16 and/or call channel

Priority scan function

Display and keypad backlighting

External speaker connection

3-digit or 4-digit channel display selectable

AquaQuake™ prevents audio degradation from a water-logged speaker

Common NMEA interface for external GPS/NAV connection

MA-500TR Class B AIS transponder compatible

IPX7 waterproof (1 m depth of water for 30 minutes)

Dimensions – 156.5 (W) × 66.5 (H) ×110.1 (D) mm
