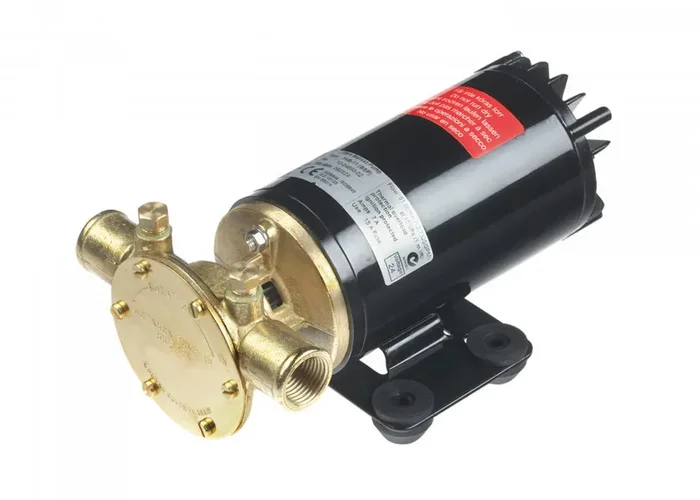

Impeller Pump F4B-11 Ultra Ballast

Description

The F4B-11 Ultra Ballast impeller pump from Johnson is designed to pump water into ballast tanks. It can also be used to pump water from ballast tanks when turning around. Up to 4 m self-priming.
The pump should be installed in a dry, cool-ventilated position. The pump can be mounted in any position without affecting performance.

Technical data

• Voltage: 12 V
• Capacity: 61 l/min
• Max. pressure: 0.6 bar
• Connection: 1/2″ female BSP thread or 1″ hose connection (Ø 25 mm)
• Max. liquid temperature: max. +55 °C
• Max. ambient temperature: +60 °C
• Dimensions (LxW): 208 x 120 mm
• Hole diameter: 5 mm
• Weight: 3 kg
• Impeller part number: 09-824P-1
