Description

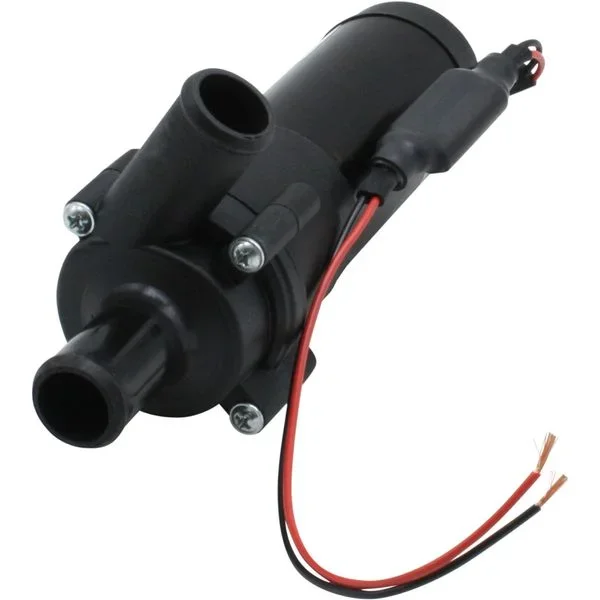

A line of compact centrifugal pumps which combine high flow rates with very low electric current consumption, making them ideally suited for circulating fresh water in live fish tanks, heating and cooling systems. But not saltwater.
rr
Withstands dry running up to 30 mins
rr
5000 hour service life rated
rr
Seal-less design makes 100% leak proof
rr
Technical Specifications:
rr
Pump Body: PPA thermoplastic
rr
Impeller: PPS thermoplastic
rr
O-ring: EPDM
rr
Shaft: Stainless Steel
rr
Magnet housing: PSU
rr
Liquid temperature: Min -40°C, Max +100°C
rr
Motor: 12V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation
rr
Model CM10P7-1
rr
CE marked according to the following standards:
rr
• EN55014: 1993/Radio disturbance
rr
• ISO8846: Small Craft – Electrical devices -protection against ignition of surrounding flammable gases
rr
• ISO10133: Small Craft – Electrical systems – extra low voltage DC installations
rr
• 72/245/EEG, 95/54/EG Electromagnetic compatibility
rr
Pressure & Capacity Data (based on water at 20°C/68°F)
