Description

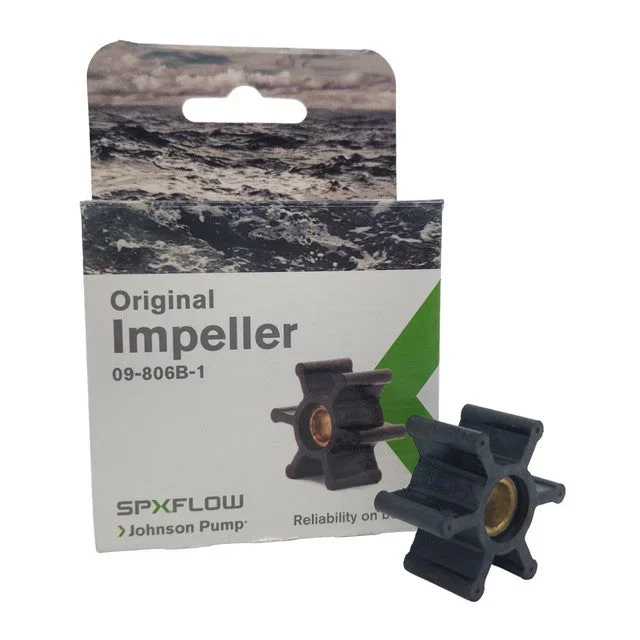

SPX Johnson – 09-806B – Impeller
SPX FLOW engineers Johnson Pump impellers for outstanding performance!
SPX FLOW supplies engine cooling pumps to the world’s leading marine motor manufacturers, not just because of our renowned pumps; but also because of the heart of an engine cooling pump: the impeller!
Specifications:
- Pump: F35
- Material: MC97/EPDM
- Outer Diameter: 40.0mm (1.58″)
- Inner Diameter: 9.5mm (0.37″)
- Width: 19.0mm (0.75″)
- Replaces Jabsco: 4528-0001 and Bukh 610G0102. Yanmar 12411-42070 and 104211-42071
- Comes with all gaskets and lube required for installation
Replaces Yanmar part number: 104211-42070, 104211-42071
Does not include Yanmar pump cover gasket 104211-42090 order separately if needed.
Suits Yanmar engines:
2GM20, 2GM20VE, 2GM20B, 2GM20C 2QM20, 3QM30, 2QM, 3QM, 2QM15, 3GM 3GM30, 3GM30VE, 3GM30B, 3GM30C YSB8, YSB12, YSE8, YSE12, YSM8, YSM12
Please note: This impeller suits 2GM & 3GM models with Japanese style seawater pump 728270-42002 (see image 6). These engines will not have an ‘E’ in their engine serial number. If you have a 2GM / 3GM engine with the European seawater pump 128377-42500 use impeller 128990-42570.
Kohler GM49316 Seawater Impeller Genuine SPX Johnson 09-806B-1
Replaces Kohler part number: GM49316
Suits Kohler petrol generators:
4.5EFOD, 6EOD
