Description

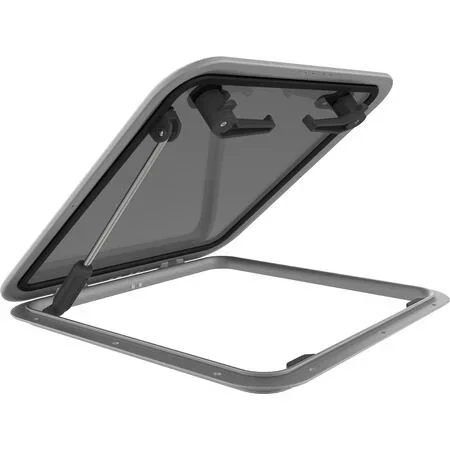

The sleekly designed Low Profile Hatch is ideal for use on a powerboat.
Smaller ventilation hatches are a better fit for sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid-size yachts. Our hatches feature Lewmar's unique sealing system allowing easy acrylic replacement. All sizes are suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).
Size 10 Low Profile with Stay is made to order.
Mounting Instructions Fit to a flat surface with a maximum tolerance of +/- 1mm.
Fastening size at hinge section use (M6 / 1/4").
Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Support System: Stay Lower Frame (mm)15 Acrylic Colour: Smoke Grey Hatch Weight (kg)4.8 Acrylic Window Thickness (mm)8 Length X (mm)512 Width Y (mm)512 Height Z (mm)25 Radii R (mm)72.5 Cut-Out Length X1 (mm) 442 Cut-Out Width Y1 (mm)442 Cut-Out Radii R1 (mm)42.5
Product Code:399440303
