Description

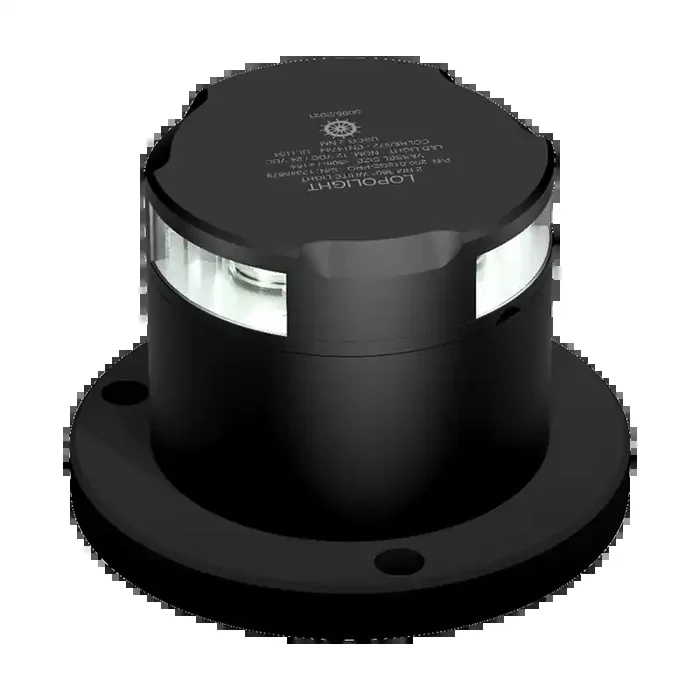

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Built-in De-icing function Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands – 3 sizes included: 9-17mm (3/8″-11/16″) cable diameter 7-13mm (1/4″-1/2″) cable diameter < Built-in De-icing function Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands – 3 sizes included: 9-17mm (3/8″-11/16″) cable diameter 7-13mm (1/4″-1/2″) cable diameter <
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Mounting | Horizontal |
| EAN | 5704438012240 |
| UPC Code | 879343012243 |
| Stock status | Made to order |
| Min. feed wire gauge | 1.5mm2 AWG18 |
| Light Color | White |
| Intensity | >15cd |
| Visibility | 3nm |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Current consumption (mA @ 24VDC) | 176 |
| Weight (Kg) | 1.14 Kg |
| Dimensions metric | ¯92,5mm x 89,5mm |
| Dimensions imperial | ¯3.6″ x 3.5″ |
| Operating temperature | -60¡C to 55¡C |
| Operating Voltage | 20-32VDC |
| Power draw (W) | 4W (normal), 21W (de-icing mode, light on) |
| Current consumption (mA @ 12VDC) | 270 |
| Vessel size | Over 50M |
| Weight (Oz) | 40.21 Oz |
