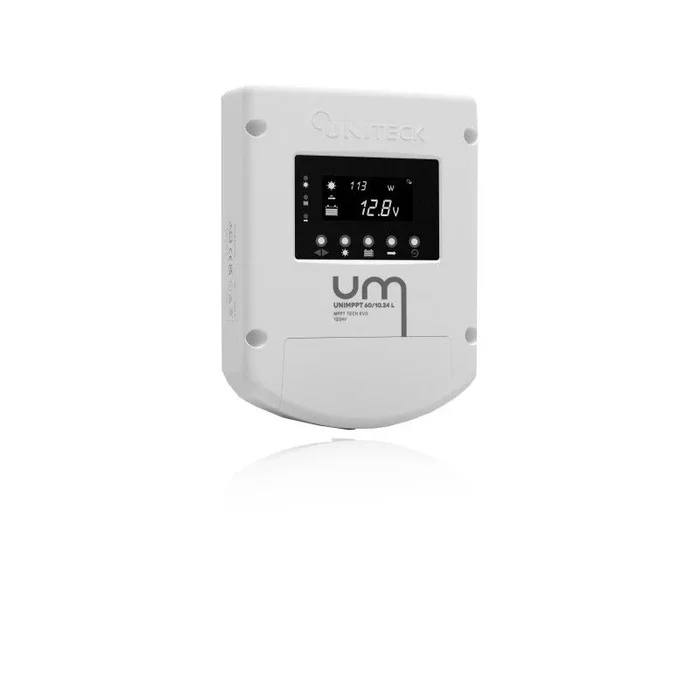

MPPT Solar Charge Controller 30A with LCD Display for Battery Management

Description

Product Description:

The UNITECK MPPT Solar Charge Controller 30A with LCD Display is a high-performance solution designed for efficient battery management in the marine and solar energy sectors. This advanced controller converts all the electrical energy generated by solar panels into charging current for batteries. With its proprietary ALGOTECK 6 charging curve, it effectively tests the battery, ensures a 100% recharge, desulfates, and desaturates while maintaining battery charge and enhancing its lifespan.

This device intelligently adjusts charging parameters by considering both battery technology and ambient temperature, optimizing voltage thresholds based on the manufacturers’ recommendations. Utilizing state-of-the-art MPPT (Maximum Power Point Tracking) technology, the controller maximizes the available energy from the solar panel by converting excess voltage, which a standard charge controller would typically waste, into usable charging current for the battery.

Featuring an optimized MPPT program and one of the fastest microprocessors on the market, the controller continuously searches for the optimal power point of the solar panel every 100 milliseconds. This results in up to 40% more energy production in winter and a 15% increase in summer, even in unpredictable weather conditions, compared to a standard PWM charge controller.

The intuitive LCD screen allows for accurate monitoring of your solar setup, displaying key data such as panel output, battery charge levels, and energy consumption through its 12/24 V controlled output. Additionally, the timer function enables users to schedule the usage of household appliances efficiently.

This device is compatible with a variety of battery types, including lead-acid AGM/GEL, liquid, and lithium (LiFePO4).

Maximum Charge Current: 30A

MPPT Efficiency: Up to 98%

LCD Display: Yes, for intuitive monitoring

Timer Function: Programmable for appliance management

Compatibility: Lead-acid AGM/GEL, liquid, and lithium (LiFePO4)

Real-time Power Point Tracking: Every 100ms

Increased Energy Production: Up to 40% in winter and 15% in summer

Temperature Compensation: Automatic adjustment based on ambient conditions

Dimensions: (Please insert dimensions here)

Weight: (Please insert weight here)
