Description

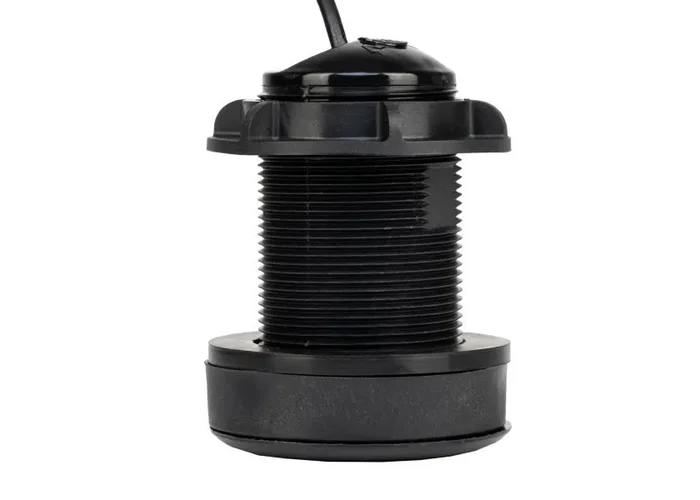

This through-hull transducer delivers good performance even at high speeds.
Easy to install in fibreglass and metal hulls, it has 8 pins. Even at depths of up to 1,200 feet (366 meters), the transducer provides accurate information. The operating frequency is 50 to 200 kHz. It has a beam width of 45 to 12 degrees and a hull deadrise angle of 0 to 7 degrees.
Technical data:
| Frequency | 50/200 kHz |
| Power | 600 W |
| Beam width | 45°/12° |
| Measuring gauges | Depth and temperature |
| Max. depth | 244 to 366 m (800 to 1200 feet) |
| Number of pins | 8-pin |
| Cable Length | 10 m |
| Supported deadrise / transom angles | 0-7° |
Compatible with the following Garmin chartplotters:
| Garmin GPSMAP 8410/8412/8416 xsv |
| Garmin GPSMAP 723/923/1223 xsv |
| Garmin Striker Vivid 7/9 sv (optional adapter cable itm: 93983 required) |
| Garmin Striker Vivid 4/5/7 cv (optional adapter cable itm: 93983 required) |
| Garmin Striker Plus 4 (optional adapter cable itm: 93984 required) |
| Garmin Striker 4 |
| Garmin Echomap Ultra 102/122 sv (optional adapter cable itm: 93984 required) |
| Garmin Echomap UHD2 72/92 sv (optional adapter cable itm: 93984 required) |
| Garmin Echomap UHD2 52/72 cv (optional adapter cable itm: 93983 required) |
| Garmin Echomap UHD 72/92 sv (optional adapter cable itm: 93984 required) |
| Garmin Echomap UHD 72 cv |
