QUALITY AUDIO AMPLIFICATION

Description

QUALITY AUDIO AMPLIFICATION

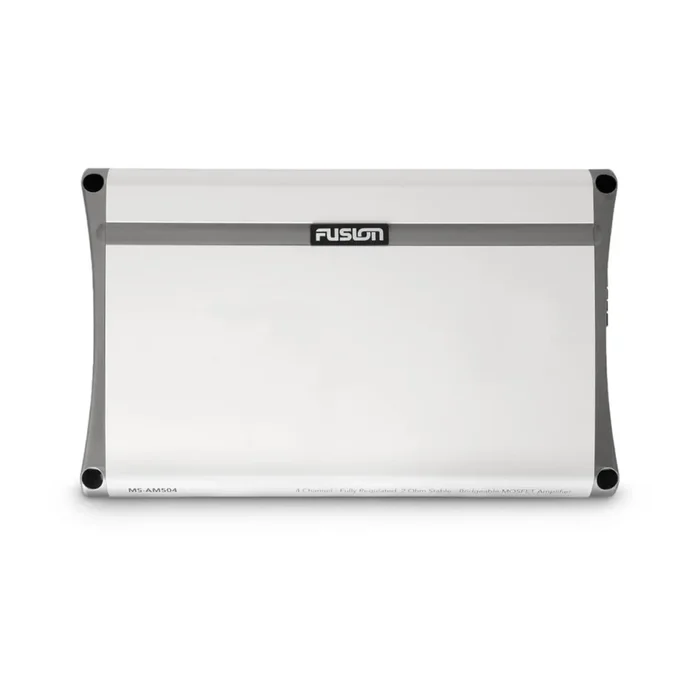

Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.

Class-AB amplifier design delivers efficiency with reduced distortion.

Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.

Conformal coated PCBs provide extra protection from the marine elements.

Heat sink provides greater dissipation of heat for enhanced component reliability.

The amplifiers are available in 2-channel and 4-channel configurations.

Overview

Physical dimensions (Length x Width x Height)	2 Channel: 11.65″ x 9.02″ x 2.09″ (296 x 229 x 53 mm)
	4 Channel: 14.41″ x 9.02″ x 2.09″ (366 x 229 x 53 mm)
Amplifier class	Class-AB
Peak power (Watts)	2 Channel: 400 W
/td>	4 Channel: 500 W
Total rated power output – 4 Ohm (Watts)	2 Channel: 65 W RMS x 2 @ 14.4 V input – 4 Ohm < 1% THD
	4 Channel: 65 W RMS x 4 @ 14.4 V input – 4 Ohm < 1% THD
Total rated power output – 2 Ohm (Watts)	2 Channel: 100 W RMS x 2 @ 14.4 V input – 2 Ohm < 1% THD
	4 Channel: 100 W RMS x 4 @ 14.4 V input – 2 Ohm < 1% THD
Total rated power output – 4 Ohm Bridged (Watts)	2 Channel: 200 W RMS x 1 @ 14.4 V input – 4 Ohm Bridged < 1% THD
	4 Channel: 200 W RMS x 2 @ 14.4 V input – 4 Ohm Bridged < 1% THD
Frequency response	5 Hz – 38 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity	0.3 V – 8 V RMS, user adjustable
Input impedance	5k Ohm nominal
High-pass/low-pass full range filter	Yes (user selectable)
HP variable crossover frequency	40 Hz – 600 Hz
LP variable crossover frequency	40 Hz – 160 Hz
Warranty	1 year
