Raymarine Axiom Pro 16 S Multifunction Display & Mediterranean Lighthouse Chart

Description

Product Overview

    Raymarine Axiom Pro 16 S Multifunction Display & Mediterranean Lighthouse Chart | E70483-00-MED

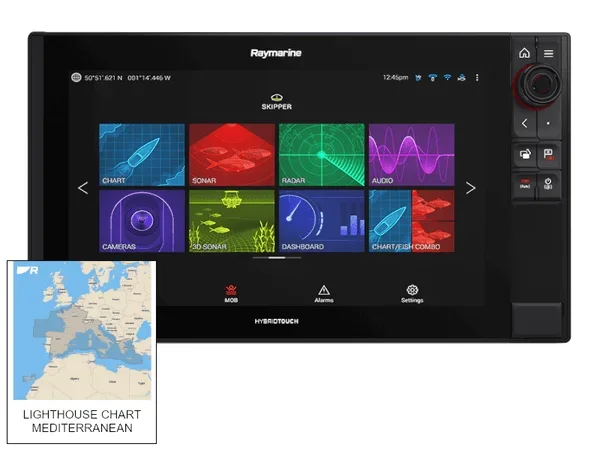

The Raymarine Axiom Pro 16 S is the new standard for “all-in-one” display with 1kW CHIRP sonar, Raymarine HybridTouch control, blazing fast quad core processor, a super bright IPS display, and the smart Light House OS. Axiom Pro delivers a fluid and intuitive navigation experience and is easy to expand into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more. The Axiom Pro’s quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns. Raymarine optical bonding technology and IPS display panels give you stunning colour, clarity and contrast in all lighting conditions. Plus, Axiom Pro looks great even through polarised sunglasses. You may combine Axiom Pro with the FLIR M132 or M232 thermal camera and enjoy Clear Cruise IR Analytics, and receive automatic alerts to hazards in the vessel’s path. Axiom Pro comes with a built-in 72 channel GPS/GLONASS receiver with fast update. Use the optional GA150 antenna accessory to boost GPS reception onboard vessels with enclosed pilothouses or metal construction where the MFD does not have a clear view of the sky. Axiom Pro works with Raymarine’s full lineup of Quantum CHIRP, HD Colour and Super HD Colour radar scanners. Enjoy all weather, day or night navigation, collision avoidance and bird finding tools. Ready-to network with all the latest electronics using standard NMEA2000 and NMEA0183 connectivity and will allow you to integrate multi-source, multi-zone marine audio from Rockford Fosgate. Compatible with the Raymarine CP470 and CP570 Professional CHIRP sonars. Enjoy powerful sonar output up to 2 kilowatts and dual, independent transceivers on CP570. The Axiom Pro also supports both video over IP and analog cameras and entertainment sources allowing you to keep an eye on everything onboard from the helm.

Mediterranean Chart = France, Spain, Italy & Greece



In The Box:

Axiom Pro MFD
Front bezel pieces and Upper keypad
Panel mount gasket
Suncover
Trunnion bracket
Trunnion knobs x 2
Fixings (M4 x 40 pan head bolt x 4, M4 Nylock nut x 4 and M4 washer x 4)
M3x5 screw, M3 spring washer and M3 crimp terminal
Power/Video/NMEA 0183 cable 1.5 m (4.92 ft) straight
Documentation pack
RayNet 2 m (6.6 ft) network cable
SeaTalkng to DeviceNet adaptor cable 1m

Specifications:

Display Size – 15.6” IPS Optically Bonded LCD

Display Resolution – 1920 x 1080 FHD

Display Type – Multitouch

Brightness – 1,200 nits

Viewing Angle – Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

Dimensions – 17.8″ x 10.2″ x2.72″ (452 x 258 x 69 mm)

Weight – 6.25 lbs (2.84 kg)

Mounting – Top, Front, and optional RAM ball mount adapter

Waterproof Rating – IPX6 / IPX7

Operating Temp – minus 13deg F to 131deg F (-25deg C to +55deg C)

Storage Temp – minus 22deg F to 158deg F (-30deg C to +70deg C)

Voltage – 12V and 24V DC (8 V to 32 DC)

Power Consumption (Full brightness) – ~45W

GNSS / GPS – Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou – 10Hz 72 Channel | External Accessory: GA150 (A80288)

Sonar Type – Built-in High CHIRP*

Sonar Connections – 25pin connector used only with CPT-S transducers that also connect directly to CP470 sonar module (Requires A80490 adaptor cable)

External Sonar – RayNet

Sonar Depth – CHIRP Sonar, 900 feet (974 m)

External Sonar – CP100, CP200, CP370, CP470, CP570 via RayNet

Radar – Quantum, Digital, HD Color and Super HD Color Radars

AIS – N2K compatible

Autopilot Control – Evolution Autopilot

Thermal Night Vision – IP or Analogue

Video / Camera – 1 x Analogue input (BNC) Up to 10 IP Cameras

Weather – GRIB View – Free GRIB viewer and Theyr Ltd Subscription | SiriusXM, N. America Only (Available in future Lighthouse 3 software update)

Audio – N2K / *Bluetooth / *SiriusXM Audio (*Available in future Lighthouse 3 software update)

Digital Switching – Empirbus & C-Zone compatible (C-Zone integration available in future Lighthouse 3 software update)

Remote Control – RMK-10 (A80438) & RCU-3 (E62351)

Ethernet – 2 x 10/100 Mbits/ Network (RayNet)

NMEA0183 – 1 Transmit / 2 Receive

NMEA2000 – 1 x NMEA2000 port (DeviceNet microC)

SeaTalkNG – Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)

USB – 1x USB microAB

Wi-Fi & Bluetooth

Waypoint/Routes/Tracks (Wpts/Rts/Trk) – 10,000 wpts / 200 wpt groups / 150 rts – 250 wpt max / 16 tracks – 10,000 max trk pts

Internal Memory – 16GB Solid State

External Memory – 2 x microSD slots

Languages – 24.
