Product Overview

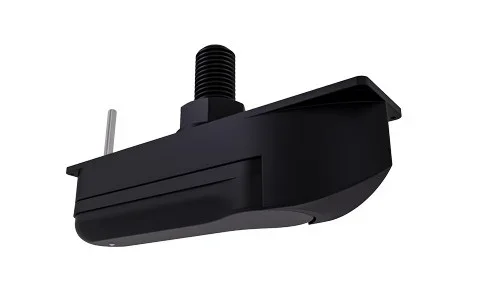

Raymarine HV-300 HyperVision Plastic 0° Through Hull Transducer | A80604
The Raymarine HV-300 HyperVision Transducer is a plastic 0° through hull mount transducer with a 6m cable. Compatible with Raymarine Element HV displays.
The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you’ll ever need.
1.2MHz HyperVision, DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.
General Specifications:
• Material: Plastic
• Max Depth: 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900
• Frequency: 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP
• Beam Width: 3D: 180° / Down: 60° / Conical: 25°
• Records: Depth / Temperature
• Hull Material: Fiberglass / Metal
• Cable Length: 19 Ft. / 6 M.
In the Box:
Anti-rotation nut
Hull nut
Anti-rotation washer
Fairing block
Documentation
Anti-rotation bolt
Transducer (with fitted cable)
