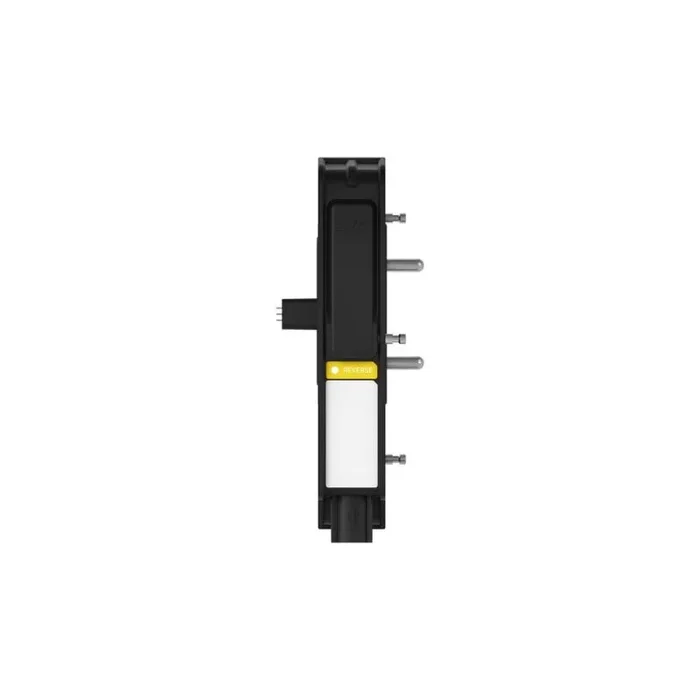

YACHTSENSE INVERSION CURRENT MODULE
The Raymarine YachtSense Digital Control System Inversion Current Module is designed for optimal control over DC circuits with the capability to reverse polarity. This module features a single bidirectional channel rated at 20 Amperes, making it suitable for various motion control applications. Whether you are managing hydraulic pumps, actuators, hatches, awnings, or electric windows, this system provides reliable performance.
Main Features
The Inversion Current Module offers control over a DC circuit capable of reversing polarity. It is ideal for motion control applications such as hydraulic pumps, actuators, hatches, awnings, and electric windows.
Channel functionalities include:
20 A reversible drive module
Overcurrent protection
Undercurrent detection
Voltage protection up to 32 V DC
| POWER SPECIFICATIONS | |
|---|---|
| Nominal Voltage |
12 V DC / 24 V DC |
| Operational Voltage |
From 8 V DC to 32 V DC |
| Maximum Output Current |
20 A |
| DATA CONNECTION | |
|---|---|
| Reversible Connection |
1 reversible power channel |
| Module Communications |
6-pin internal connection |
| PHYSICAL DATA | |
|---|---|
| Module Dimensions: H/W/D (excluding busbars) |
160 mm (6.30 in) x 28.00 mm (1.10 in) x 76.50 mm (3.01 in) |
| Weight |
0.26 Kg (0.57 lb) |
PACKAGE CONTENTS
| 1 |
Input or output modules (all modules come with Molex output connectors; output modules are equipped with mounted fuses). |
| 2 |
Documentation |
Power Specifications: Nominal Voltage: 12 V DC / 24 V DC, Operational Voltage: 8 V DC to 32 V DC, Maximum Output Current: 20 A
Reversible Connection: 1 reversible power channel
Module Dimensions: 160 mm (6.30 in) x 28.00 mm (1.10 in) x 76.50 mm (3.01 in)
Weight: 0.26 Kg (0.57 lb)
Application: Ideal for hydraulic pumps, actuators, hatches, awnings, and electric windows
