Rocna Vulcan 6Kg Galvanised Anchor

Description

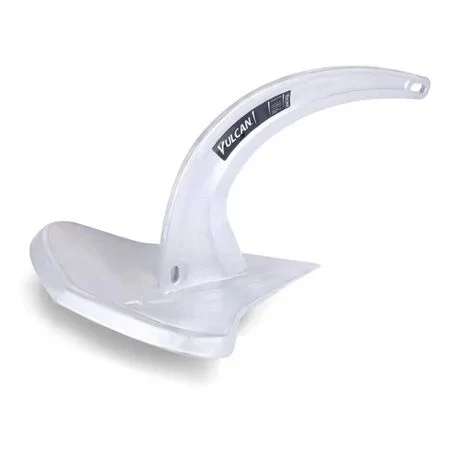

The Rocna Vulcan 6 Kg Galvanised Anchor is a product of Rocna's first major design development since the launch of the incredibly successful and acclaimed Rocna anchor itself. It is a robust and reliable solution designed for a wide range of vessels. Crafted from high quality galvanised steel, this 6kg anchor offers exceptional durability, as well as resistance to corrosion, ensuring long – lasting performance in diverse marine environments.
The Vulcan is carefully designed to offer the greatest possible compatibility across a wider range of vessel bow configurations, particularly powerboats with a bow pulpit. Differing from the typical Rocna design, the Vulcan features a unique combination of shank and fluke geometry – including an innovative roll-palm™ (A) at the rear of the fluke – which self-rights the anchor on the seabed without the use of a roll-bar. This is assisted by the V-bulb™ (B), which extends fluke ballast downward to gain maximum leverage and efficiency. This development permits a larger fluke surface area than competing designs, which rely on simple dead weight, while the concave fluke (C) is similar in design to the Rocna, directly equating to more holding power and security.
The omission of a roll-bar along with a carefully designed shank profile (D) ensures a snug fit on the bows of a widely expanded range of vessels. Platforms, bowsprits, prods, stays, and other protrusions are easily cleared without hassle or inconvenience. The Vulcan's shank shape (D) encourages self-launching and self-stowing upon retrieval on the majority of bow rollers, with a liquid smooth action, ensuring ease of use for all operators.
In addition to the use of high tensile steel, shank strength is optimised by a unique I+V profile™ shank design (E), granting improved resistance to bending courtesy of a computer-optimised I-beam geometry. This visually elegant innovation also improves setting performance, with the lower V edge (F) cutting into the seabed and minimising resistance to a deep and secure burial.
The Rocna Vulcan 6 Kg Galvanised Anchor combines cutting – edge engineering with practical functionality, making it a trusted choice for sailors and boaters seeking dependable anchorage.
Specifications:

A: 541 mm

B: 163 mm

C: 167 mm

D: 53 mm

E: 136 mm

S: 77 mm

Width: 296 mm

Weight: 6 kg

Fluke Area: 560 cm²

Product Code:77.106.071
