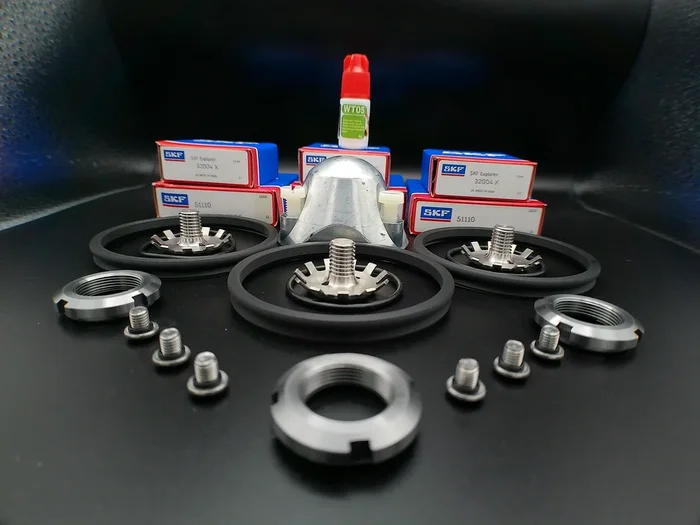

This Kit Contains all the Necessary Parts to Change the Bearings In Your Propeller
Code: H6RBTSKIT
| Part Number | Quantity | Part Description |
| M40.00X02.50’O’RINGNITRILE70 | 3 | 40.0mm Inner Dia x 2.50mm Section “O” Ring Nitrile 70 Shore |
| BEARING32004X | 3 | Taper Roller Bearing 32004X |
| BEARING51110 | 3 | Thrust Race Bearing 51110 |
| H6TSLN | 3 | H6 Tabscrew Locking Nut |
| H6LS | 3 | H6 Roller Bearing Autoprop Seal |
| M5X6BUTHDSSA4 | 6 | M5 x 6.0mm Button head Screw Stainless Steel A4 |
| H6AN | 1 | H6 Zinc Anode |
| M8X25CHHDNY | 1 | M8 x 25.0mm Cheese Head Screw Nylon |
| Threadlocker WT03 – Loctite equivalent 2400 | 1 | Threadlocker WT03 – 5ml Bottle |
| M04.50X01.00’O’RINGNITRILE70 | 6 | 4.5mm Inner Diameter x 1.0mm Section “O” Ring Nitrile 70 Shore |
| H6RBTS | 3 | H6 Roller Bearing Tab Screw |
H6 rollerbearing tabscrew bearing replacement instructions
