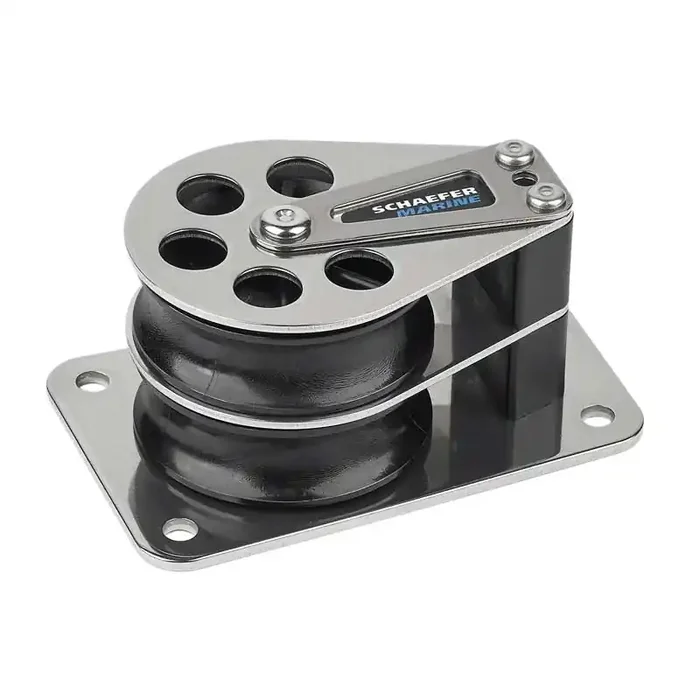

Schaefer Cheek, Double, Delrin Sheave

Description

7 Series Cheek Block with Stainless Steel cheeks. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area. Sheave Dia. 2-3/8″ (60 mm), Max Line 1/2″ (13 mm), L 4-3/8″ (111 mm), W 2-3/4″ (70 mm), H 1-29/32″ (48 mm), Fasteners (4) 1/4″ RH (6 mm), C/C 3-5/8″ (92 mm), SWL 2250 lbs. (1020 kg), Top Sheave Safe Working Load = 500 lbs (227kg), Weight Stain. 15.9 oz. (447 g)
