SIMRAD A2004 Autopilot with Precision-9 Compass

Description

SIMRAD A2004

The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays. A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats.

No Drift mode integrates GPS navigation with auto-steering, using position data to counteract the effects of wind and tide. This allows the A2004 to maintain a straight track over ground on the current heading, without the need to manually set a waypoint or route. No Drift steering is available with an NMEA 2000® connected GPS receiver or compatible Simrad chartplotter.

To ensure optimal visibility in all conditions, the A2004s colour LCD panel is optically bonded to its protective glass covering eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.

Click here for Precision-9 Compass information.

Note: this Autopilot pack excludes a drive unit. A drive unit is an essential Autopilot component. If you do not have an existing drive unit then please select from our selection here.

Key Features

Proven Simrad interface designed for commercial marine applications

Large, heavy-duty rotary control dial for precision steering

Continuum steering technology

Optically bonded 4.1-inch colour display with 170-degree viewing angle

Thruster integration & heavy-duty rudder feedback support

Configurable work mode and low/high speed modes

Automated turn patterns for fuel-efficient, hands-free manoeuvres

No Drift steering holds course against wind and tide

Flush or bracket mounting options

Certified NMEA 2000® connectivity

In the Box

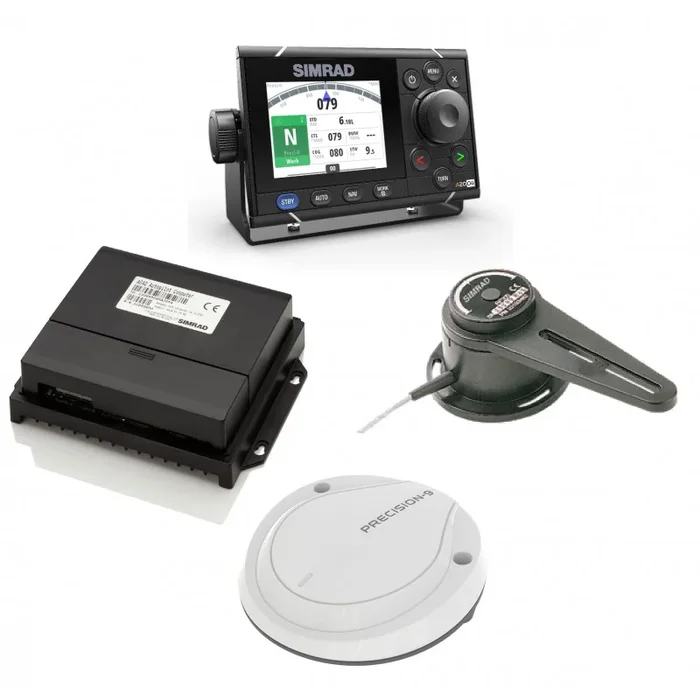

Simrad A2004 Autopilot control & mounting bracket, AC70 junction box, RF300 rudder feedback, Precision-9 Compass & NMEA2000 backbone starter kit
