Description

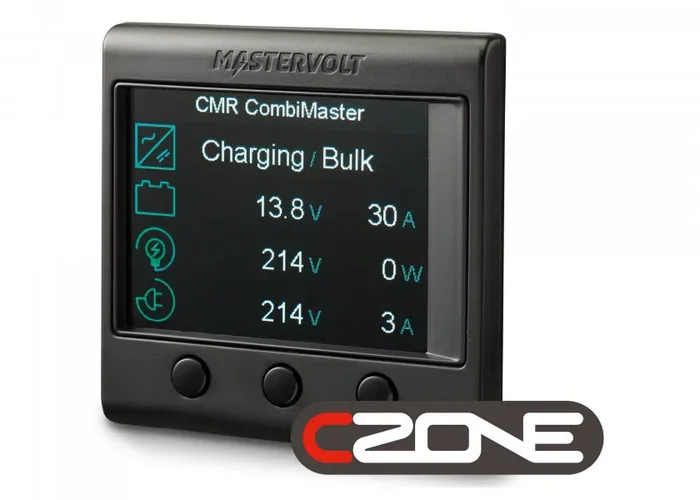

The SmartRemote completes any MasterBus or CZone system perfectly!
Checking your batteries, adjusting your shore fuse or controlling your Mastervolt charger/inverter has never been easier. The display communicates with Mastervolt devices**, shows key parameters and allows simple device settings.
With its attractive design and compact size, the SmartRemote is thus ideal as a remote control panel in smaller systems and works as a local device display in larger systems.
ATTENTION: “Local device display” means that SmartRemote can only be configured to one device to be monitored/operated. If several units are to be monitored/operated in one system, each unit must have its own SmartRemote. SmartRemote can NOT display/operate multiple devices at the same time, as is possible with the EasyView 5, for example.
** SmartRemote currently supports the following MASTERVOLT products:
-Mac Plus, all models.
– Mass Chargers Plus, all models.
– CombiMaster, all models.
– ChargeMaster Plus, all models.
– Lithium batteries MLI Ultra 5500, MLI Ultra 2750, MLI Ultra 3000, MLI Ultra 5000, MLI Ultra 2500, MLI Ultra 1250, MLI Ultra MKI.
-MasterShunt 500 CZone, MasterShunt 500.
Support for other Mastervolt products (battery chargers, inverters) is under development and will be announced as soon as it is available.
Special features
- Full colour display for local device monitoring
- Displays four key parameters
- Control key device functions
- Compatibility with the MasterBus network
- Universal, easy mounting
- Plug & Play – no configuration, no power supply needed
Technical Data
| Display | 2.8″ (7.1 cm) |
| Resolution | 320 x 240 px (high colour) |
| Power consumption | Bus powered (<160 mW) |
| Interfaces | CZone, MasterBus |
| Installation | Panel mount (Ø 52 mm) |
| Waterproof | IP20 |
| Dimensions (h x w x d) | 72 x 72 x 29.4 mm |
| Weight | 0.075 kg |
| Included in delivery | MasterBus cable (6 m), documents |
