Description

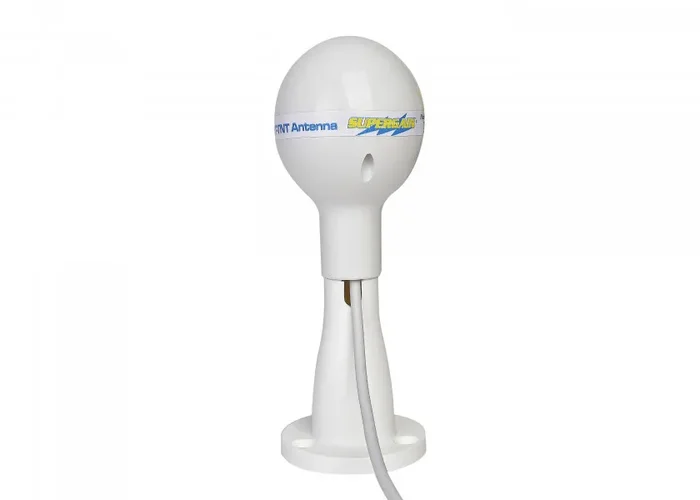

Small but powerful! Omnidirectional active DVB-T antenna with an extraordinary and compact design. The integrated, low-noise amplifier provides a smooth 23.5 dB gain and ensures excellent reception on all types of boats and vehicles. Can also be used as an indoor antenna.
Its compact dimensions (Ø 70 mm / 2.8″ x 165 mm / 6.5″ height), integrated base and low weight allow for easy installation. The supplied base can be screwed in or glued, allowing it to be used as a cable duct below deck or in the vehicle’s interior. If necessary, the 5 m long coaxial cable can also be led out of the base sideways.
The antenna can also be mounted on other commercially available antenna brackets with a 1″-14 UNS male thread, but the coax cable must run through the antenna holder.
The antenna amplifier is located in the ball and is connected to a 12-volt electrical system via 5 m coax cable.
Universally applicable, indoors and outdoors.
Suitable for receiving terrestrial DVB-T1 / 2, TNT and HDTV signals.
Scope of delivery: Antenna with base and 5 m coax cable, V9114PI power feed including fuse (250 mA), 1.5 m TV connection cable as well as fastening screws.
Antenna
Dimensions
- Antenna with base: Ø 70 mm x 165 mm height
- Antenna without base: Ø 70 mm x 99 mm height
- Antenna base (Base diameter: 71 mm, hole size for fastening screws: 56 mm, 3 mounting holes: Ø 6.5 mm)
- Weight: 110 g (4 oz)
- Material: Acrylester-styrene-acrylonitrile (ASA)
- Mounting with 1″-14 UNS female thread, can also be mounted on other antenna holders with a 1″ -14 UNS male thread
Electrical properties
- Receiving angle: Omnidirectional, 360°
- Polarization: Horizontal
- Frequency range 170/890 MHz
- Average noise: 23.5 dB
- Noise factor: 1.7 dB
- Impedance: 75 Ohm
- Operating voltage: 12 V power supply
- Current consumption: Approx. 25 mA
Antenna connection cable
- Coax cable 3C-2V, 75 Ohm, white, 5 mm Ø, length 5 m
- Ready for connection with F connector
- Max. Ø F connector: 13 mm
TV connection cable
- Coax cable 3C-2V, 75 Ohm, white, 5 mm Ø, length 1.5 m
- Ready for connection with F- and TV- (IEC-male) connectors
- Max. plug-Ø: F connector 13 mm / IEC connector 15 mm
Inlet switch
- Dimensions (L x W x H): approx. 70 x 45 x 17 mm
- F socket ANTENNA IN
- F socket TV OUT
- 12 V DC – two individual wires, length approx. 25 cm (RED = POS12 V (including fuse), BLACK = NEG)
- Grounding clamp on housing (max. cable cross section: 10 mm²)
- Fuse: 250 mA, 5 x 20 mm
- Mounting option: a 4 mm hole
Delivery contents
- Antenna with foot and 5 m coax cable
- Inlet switch
- TV connection cable: 1.5 m
- 3x countersunk head screws: 4.9 x 19 mm
Mounting instructions
- The antenna base can be glued and / or screwed in place.
- The 5 m coax cable runs through the antenna base. The cable can also be removed from the antenna base by removing the small cap.
- If required, the TV connection cable can be extended by standard TV antenna cables (IEC / IEC connector).
- If required, the 5 m coaxial cable can be extended. Low-loss coax cables, F connectors and plugs can be found under accessories.
Would you like to connect two TV sets / receivers?
The output signal from the TV-OUT feed-in socket can be distributed to 2 devices via an antenna switch (art. 73108). You will need the necessary components and connection cables from our selection of accessory components, according to your specific requirements.
Electrical connection
- First connect the 5 m long antenna cable with the inlet switch, ANTENNA IN socket.
- Next, connect the 1.5 m long TV connection cable to the inlet switch, TV OUT jack.
- Connect the inlet switch to a 12 volt power source after connecting the coax cables.
- The inlet switch has a housing terminal. This can be connected to the vehicle’s body.
- Be sure to follow the assembly sequence and avoid reverse polarity!
- Failure to observe this can result in short circuiting, and in the worst case, total failure of the inlet switch.
- Do not loosen / twist the screw connection of the DC voltage input!
- The cables could break off of the circuit board, which can lead to irreparable damage.
- Do not remove the plugs from the coaxial cables!
- Failure to observe the above points will result in the loss of your warranty.
* GLOMEX, Italian producer of high-quality and technologically-advanced marine / automotive antennas, offers antennas under the name SUPERGAIN with new and extraordinary designs at very good price to performance ratios.
