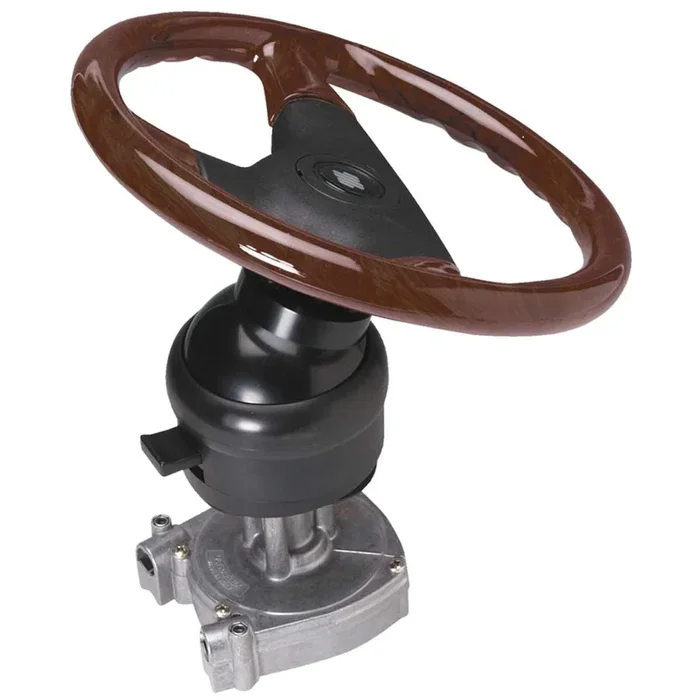

Ultraflex Fast Connect Tilt Steering Helm

Description

Common features:rPlanetary Gear Design.rTilt range of 48° and five locking positions.rAll stainless steel cable output ends as per ABYC safety standards.rFast connect, simple installation.rTilt device eliminates under dash movementrStandard 3/4″ Tapered Shaft – Stainless steelrCorrosion resistant materials.rLock-to-lock steering wheel turns: Approximately 3.8.rStroke: 228mm (9″).rMaximum steering wheel diameter: 406mm (16″).rMinimum steering cable bend radius: 200mm (7.9″).rT81FC & T83NRFC Are not be used on boats equipped with engines that exceed the max horsepower rating of the boat.rFor boats faster than 50mph hydraulic steering systems are recommendedrExceeds ABYC P17 & EN 28848 safety standards.r———————————————————————–rT-81FCrThe reversible steering helm eliminates the continuous load on the operator caused by the propeller torque making steering easy and safe.rIdeal for outboards and surfacing propellers.
