Kit Bow Thruster Quick BTQ 140-40 12V

Description

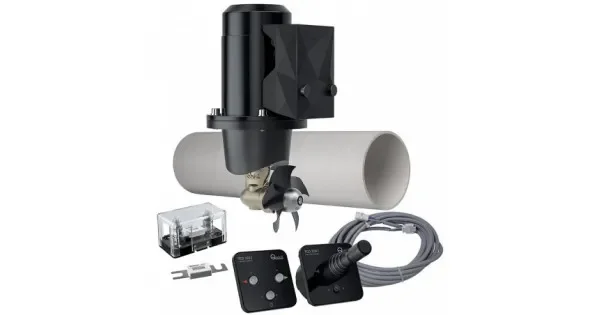

Kit Bow Thruster Quick BTQ 140-40 12V

This product is Manufactured or Distributed by Quick . Kit Bow Thruster Quick BTQ 140-40 12V ,

Quick BTQ 140 40Kgf Bow Thruster Kit

Introducing the Quick BTQ 140 Bow Thruster Kit, a comprehensive solution designed for easy installation. This kit features a robust carter protection made from durable composite material, a bronze gearbox, and an elastic coupling. The components included in the kit are as follows:

• Tunnel Lengths: 75 cm (for BTQ 125/140) and 100 cm (for BTQ 185)
• Control Panels: Touch panel TCD1022 (for BTQ 125/140)
• Electric Cables: 6 m (for BTQ 125/140)
• Fuse and Fuse Holder

The Quick BTQ 140-40 12V DC thruster kit is ideal for boats measuring between 7 to 9 metres (23 to 29 feet) in length. This model features a single propeller constructed from sturdy composite material, complemented by a bronze gearbox and solenoids protected by a robust composite carter. It includes an elastic coupling and a zinc anode that is independent of the gearbox, allowing for easy replacement.

Kit Contents:

• BTQ 140-40 12V DC thruster
• Touch panel
• 6-metre loom
• 750 mm GRP tunnel

Additionally, the kit includes a drill template, gasket, O-ring (for assembly), an installation and user manual, and warranty conditions.

Specifications:

• Model: BTQ 140-40 (12V)
• Propeller Type: Single
• Tunnel Diameter: 140 mm (5″ 33/64)
• Motor Power: 2.2 kW
• Voltage: 12V
• Fuse Rating: 225A CNL DIN
• Thrust: 40 kgf (88.2 lb)
• Weight: 12.2 kg (26.8 lb)

In the Box:

• Thruster
• Tunnel
• Touch Panel
• 6 m Loom
• Drill Template
• Gasket & O-ring
• Documentation

This kit provides everything you need for a reliable and efficient bow thruster installation, ensuring enhanced manoeuvrability for your vessel
