Description

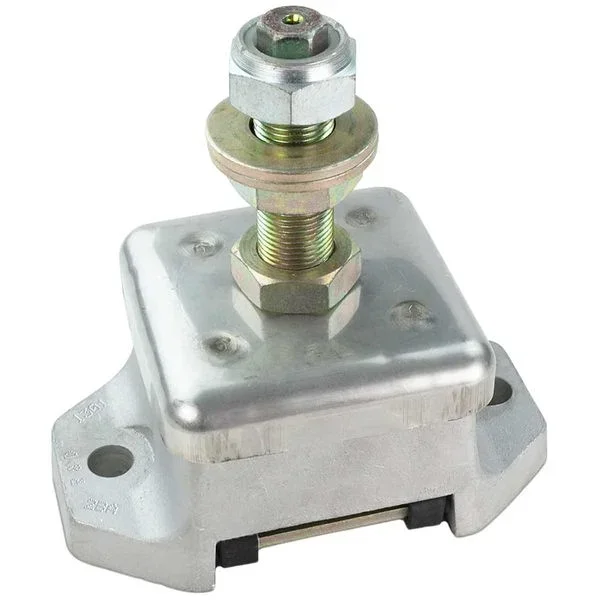

R&D Flexible Engine Mount (Shear Type / 650 – 1501LBS / 1″ Stud)
Part No: 207056
R&D flexible engine mountings have been designed and engineered for the rigours of marine engines.
The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is fitted with an oil shield which is designed to protect the rubber.
| Height | 161.10mm (6.34″), Base: 86.62mm (3.41″) |
| Length | Base: 174.63mm (6.88″) |
| Maximum Load | 296kg to 682kg (650kg to 1501lbs) |
| Width | Base: 101.6mm (4″) |
| Brand | R&D Marine |
| Hole Centres | 139.7mm (5.5″) |
| Country of Origin | United Kingdom |
| Engine Mount | Shear Circular Engine Mounts |
| Deflection | 3mm to 6.4mm (0.12″ to 0.25″) |
| Dimensions | Height Adjusting Double Nut & Washer Thickness: 31.75mm (1.25″) |
| Mount Pre loaded | 3mm (0.12″) |
| Stud Size | 1″ UNF |
